Don’t let the price tag on these crate engines from Summit Racing fool you. They may be BluePrint Engines’ most affordable, but they deliver plenty of bang for the buck. What’s more, they are backed by a 30-month/50,000-mile warranty.

The small block Chevy 350 and Ford 302 engines are ideal for kitcars and street rods, and they’re based on hand-picked, seasoned blocks with align-honed main bearing bores, and cylinders sonic tested for thickness before being honed on computer-controlled machines to within .0002in straightness/roundness.

All internal components are brand new, and BluePrint takes the time to balance and dyno test each engine. You’ll even get the dyno printout so you know exactly how much power your engine makes.

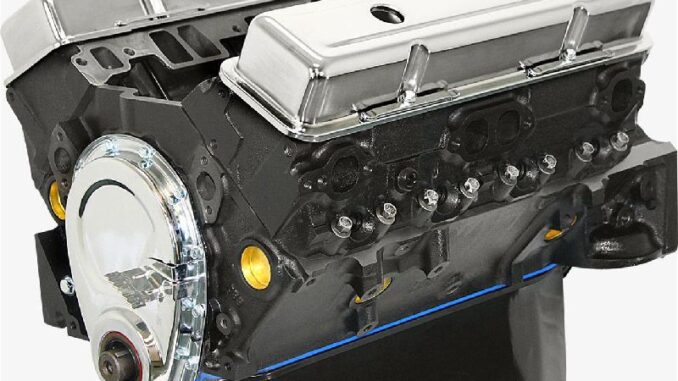

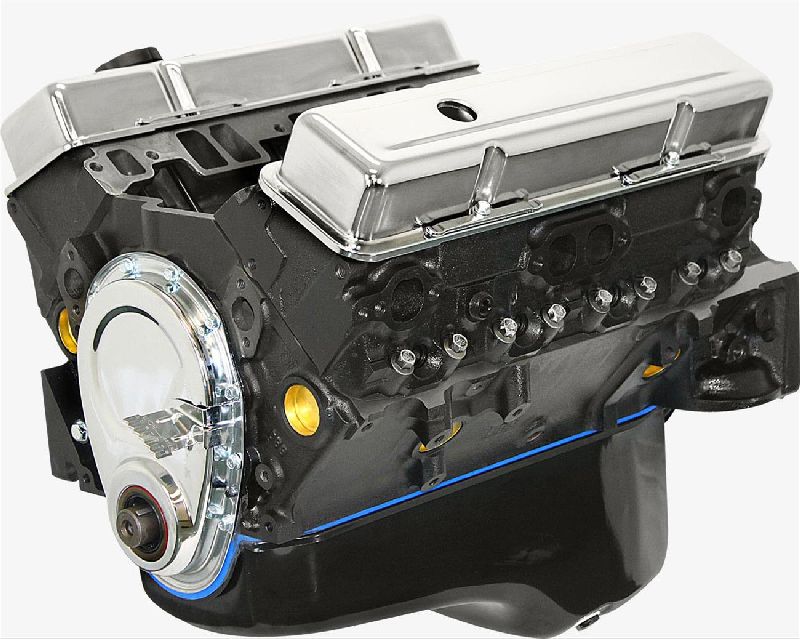

Chevy 350 Long Block, 325bhp

Pistons: Hypereutectic with Hastings ring set

Camshaft: Hydraulic flat tappet, .480”/.486” lift, 224°/230° duration at .050” lift

Cylinder Heads: Cast iron with 64cc chambers, 2.02”/1.60” swirl polished valves

Timing Set: Double roller

Oil Pump: High volume

Valve covers, sump and timing cover included

Chevy 350 Long Block, 375bhp

Compression Ratio: 9.3:1

Camshaft: Hydraulic roller, .495”/.502” lift, 221°/ 226° duration at .050” lift

Cylinder Heads: Vortec cast iron with 64cc chambers, 2.02”/1.60” swirl polished valves

Timing Set: Double roller

Oil Pump: High volume

Valve covers, sump and timing cover included

Ford 302 Long Block, 300bhp

Camshaft: Hydraulic roller, .543”/.554” lift, 218° / 226° duration at .050” lift

Cylinder Heads: Cast iron with 62cc chambers, 2.02”/1.60” swirl polished valves

Timing Set: Double roller

Oil Pump: High volume

Valve covers, sumps and timing cover included

Ford 302 Fully Dressed Engine, 235bhp

Camshaft: Hydraulic flat tappet, .376”/.389” lift, 184°/191° duration at .050” lift

Cylinder Heads: Cast iron with 62cc chambers, 2.02”/1.60” swirl polished valves

Timing Set: Double roller

Oil Pump: Hhigh volume

Induction System: Four-barrel carburettor on dual plane intake manifold

Ignition: Electronic distributor with spark plugs and wires

Water pump, mechanical fuel pump, valve covers, sump and timing cover included

Looking for a crate engine with a little more oomph? Check out these other BluePrint Engines Chevy, Ford, and Chrysler long blocks and fully dressed engines.
