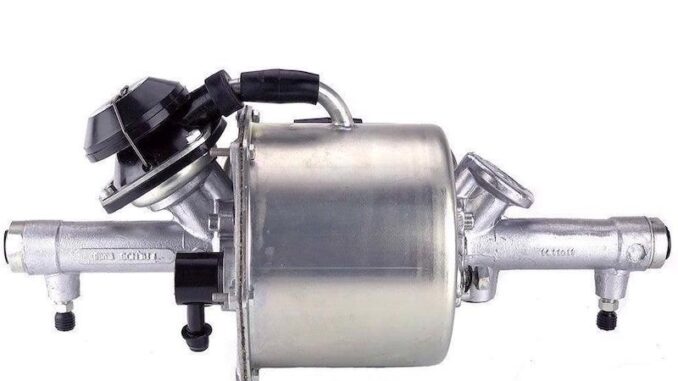

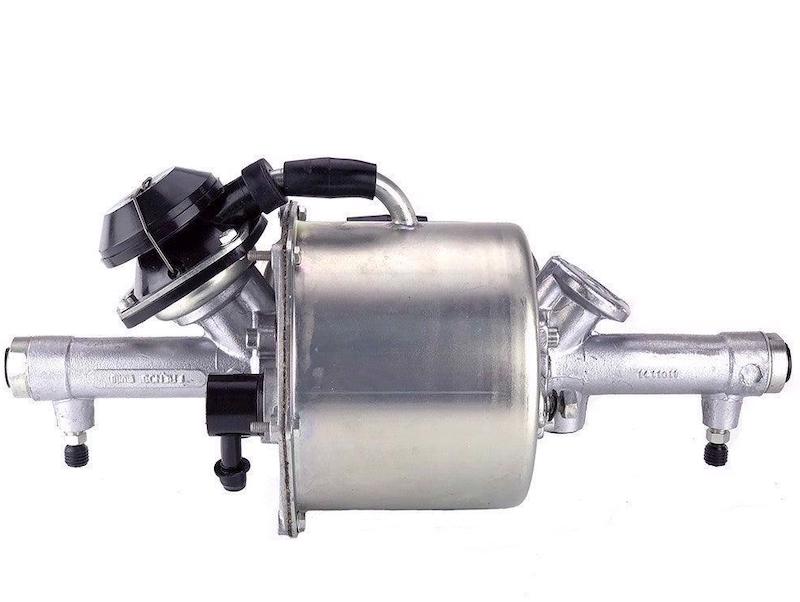

This new Compact Dual Circuit Remote Brake Servo from Car Builder Solutions will upgrade your vehicle’s braking performance.

This powerful and compact dual circuit remote brake servo provides a 2:1 power boost ratio at 600mm Hg vacuum, significantly improving your stopping power. Its dual circuit design allows for separate front and rear brake circuits, ensuring balanced and reliable braking in all conditions.

Features:

Compact Design: Canister diameter of 138mm and overall length of 380mm for easy installation in various locations.

Dual Circuit Operation: Provides independent braking for front and rear circuits for enhanced safety.

High-Performance Boost: 2:1 power boost ratio for significantly improved stopping power.

Easy Installation: Includes two M5 mounting studs on the cylinder flange and one M8 stud on the rear of the canister.

Bleed Screws: Features bleed screws on each cylinder for easy maintenance (Important: Each bleed screw has a ball bearing seal, so take care not to lose it during removal).

Recommended Configuration: For optimal performance, connect the front brakes to the cylinder adjacent to the air valve.

Weighing in at just 4.74kg, the servo costs £390 and is available now from www.carbuilder.com or call 01580 891 309 ENDS.
